Product features
·The light source adopts integrated light source encapsulation technology, has good stability;
·It is simple design, strong extensibility, and better supplementary lighting effect.light eight,which is easy to install and maintain;
·Its shell is aluminum alloy, has good heat dissipation function and low light dissipation,also the product stability is good;
·Delivers full spectrum distribution of combination of royal blue +deep red+ far red + white;
·Passive thermal control, low running temperature, long lifetime;
·Full cycle spectrum ,No luminaire change in whole grow phases of plants;
·Optional 0-10V analogue dimming knob with RJ11 port (Option: knob with RJ11 port );
·Growers can choose spectrum structure freely according to their demands;
·Optional LED chips are used with output range from 4125 to 4750 umol/s.
·Using water-cooling, can reduce the temperature of fixture and prolong their service life; and reduce the operating cost , the cooling water can be recycled;
·The compact size of the luminaire reduces the block of sunlight onto the plants;
·Efficient light output, reduced installation the quantity of lighting fixtures;
·Can directly replace the hightest level fixture HPS 1050W (with light output of 3940μmol/s, but the weight can be reduced by 85%.
Installation
·Make sure the power cut.
·The installation is as easy as hanging the supplied V hooks on a bar (not included).
·Any adjustable ratchet hanger, chain, etc can be connected on the V hooks.
·Hang the fixture from a strong cord or chain from both ends. Note that each hook should be able to withstand a rated weight of at least 50-lbs. Please hang the hook provided by the drive on the fixing rod, and then conn·ect the wiring between the lamp and the drive.
·Route the electrical cord up and away from the light to another hook (not provided) and down the wall to the drive.

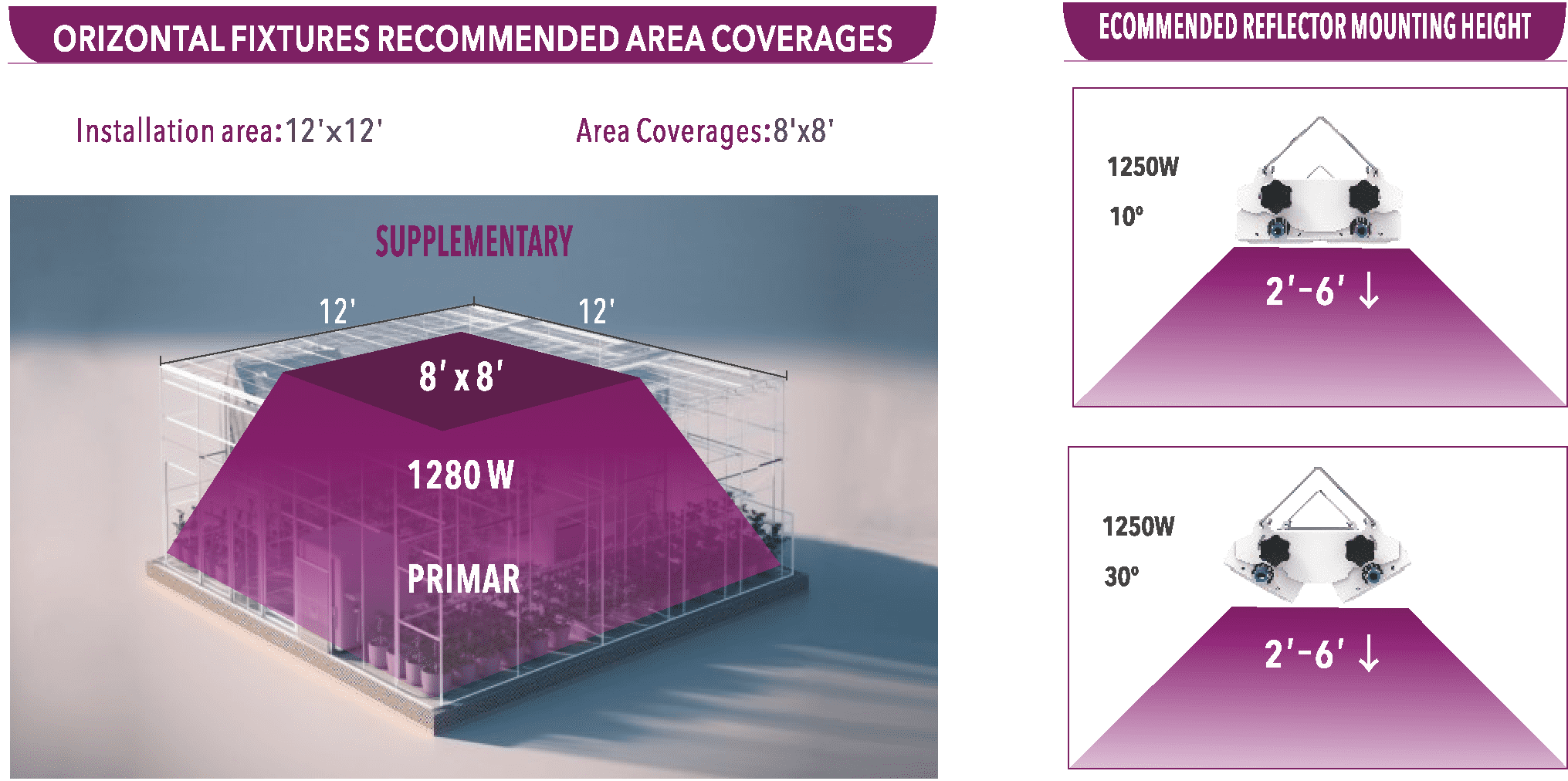

·It is recommended to adjust the distance between the luminaire and crops in different grow stages for maximum yield.Steel suspension wires with snap hooks and wire clips are optional for connection.
Application
·Supplemental or main artificial grow lighting in green houses for flowers, green leafy vegetables, herbs, cannabis, etc.
·The flowering and pre-harvest stages of crops and cannabis.

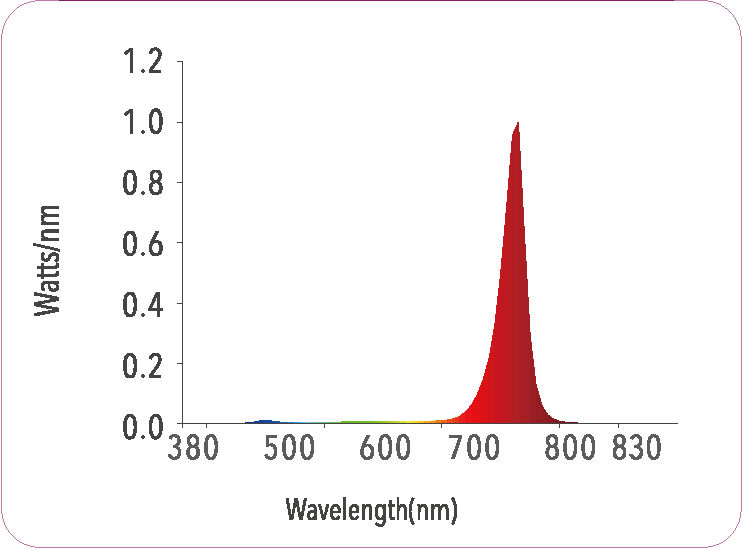

Spectral Power Distribution

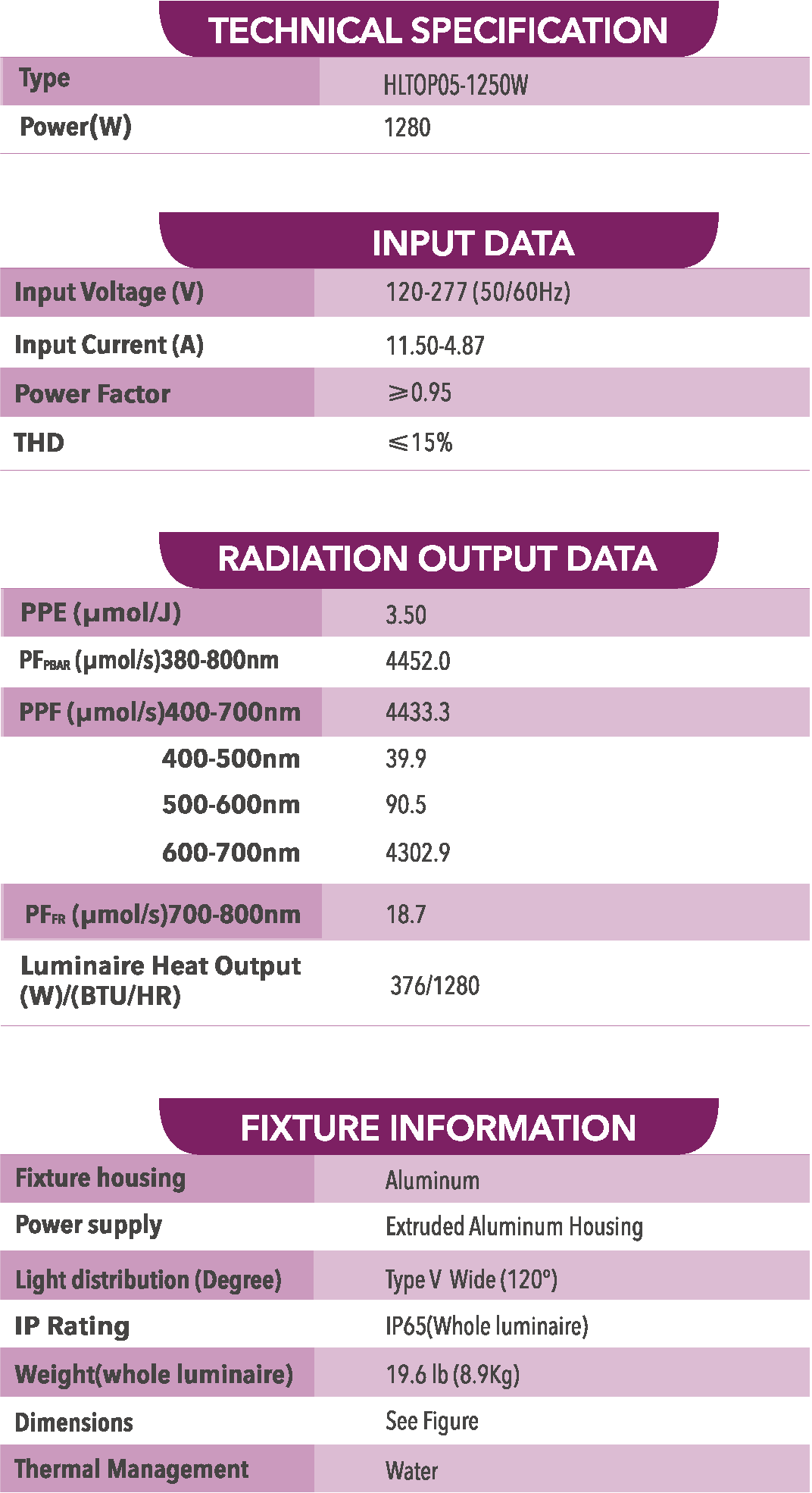

Lamp information

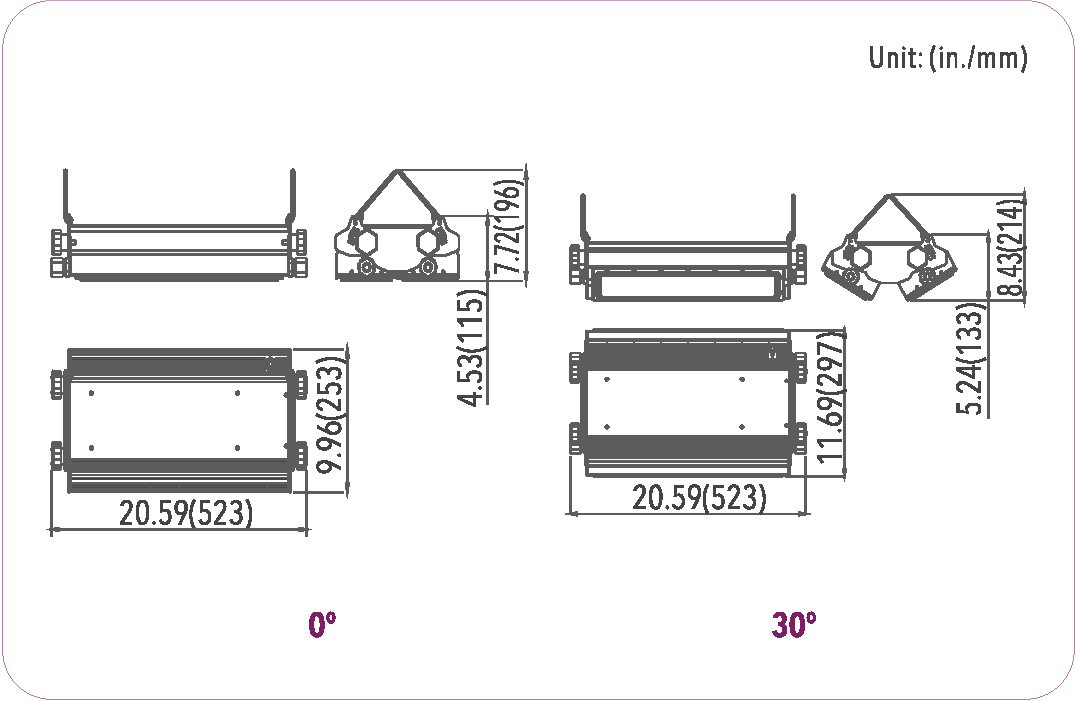

Dimensional drawing
Lamp information
